| Speaker type |
2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) |
34Hz - 20kHz |
| Coverage area |
H90ﾟ x V50ﾟ (Rotatable) |

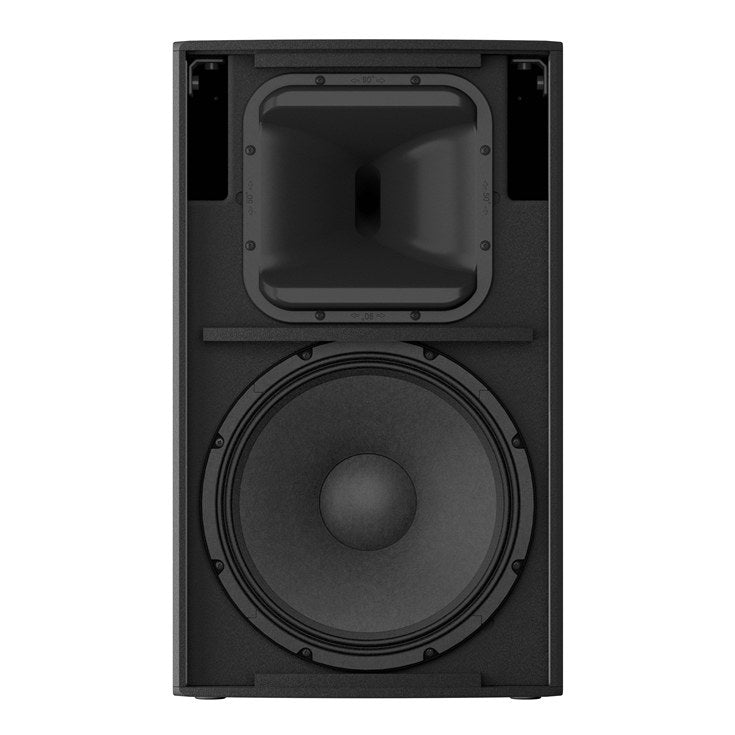

| Components |
LF |
15" Cone, 3" Voice Coil, Neodymium magnet |
| MF |
- |
| HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
| Crossover |
1.7kHz (FIR-X) |
| Sampling frequency rate |
Internal |
96kHz and FIR Filter |
| A/D D/A Converters |
96kHz AD/DA |
| Maximum output level (1m; on axis) |
139dB SPL *1 |
| Power rating |
Dynamic |
2000W (LF: 1000W, MF/HF: 1000W) *2 |
| Burst (20ms) |
1100W (LF: 1000W, MF/HF: 100W) |
| Continuous |
950W (LF: 850W, MF/HF: 100W) |

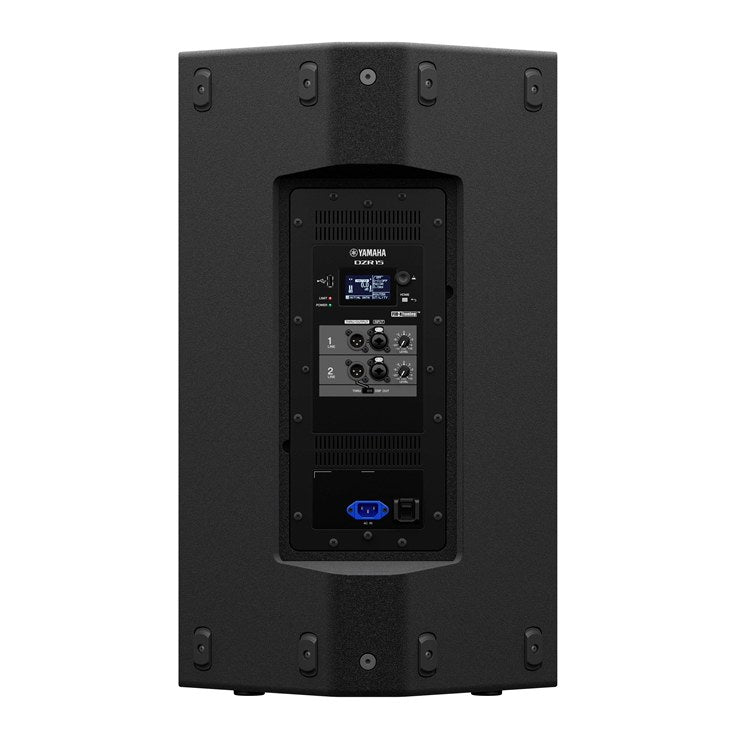

| I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
| AC |
IEC AC inlet x1 (V-Lock) |
| Amplifier class |
Class-D |
| Cooling |
Fan cooling, Variable speeds |
| Power consumption |
45W (Idle), 150W (1/8) |
| Handle |
Aluminium die-cast, Side x2 |
| Rigging |
M10 x12 |
| Dimensions |
W |
450 mm (17.7") |
| H |
761 mm (30.0") (with rubber feet) |
| D |
460 mm (18.1") |
| Net weight |
25.2kg (55.6lbs) |
| Options |
U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 |
| Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White |

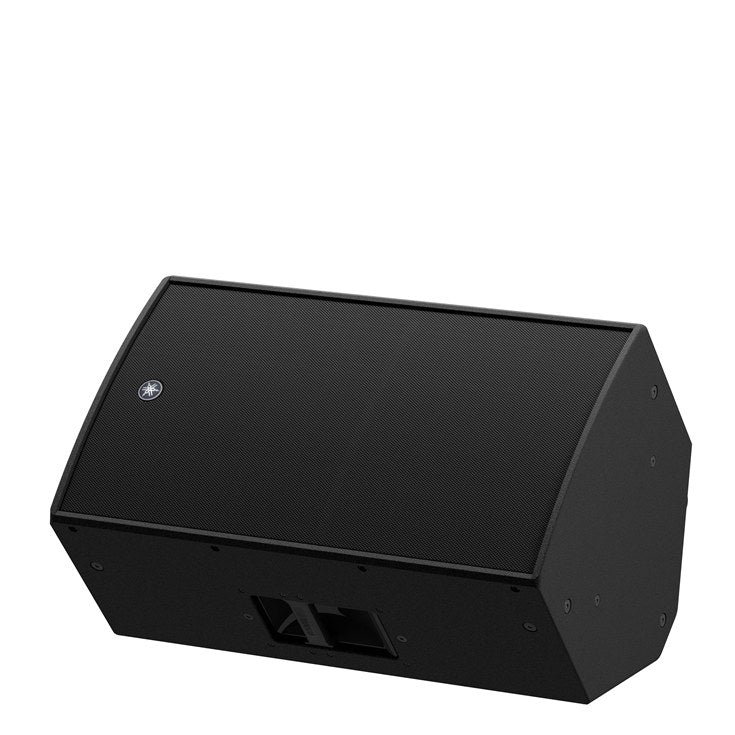

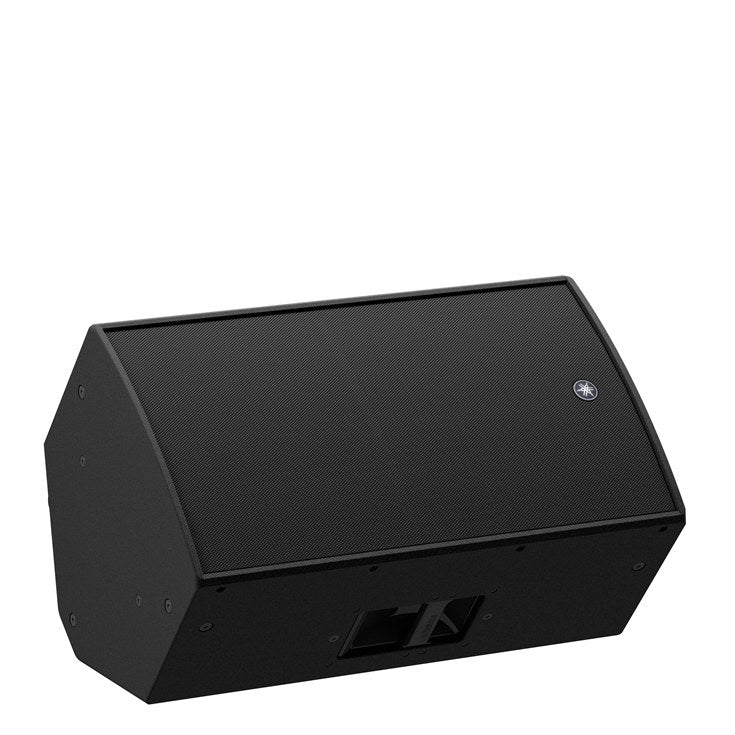

| Floor Monitor Angle |
50° Symmetrical |
| Pole socket |
Φ35 mm x2 (0° or -7°) |
| *1: Measured peak SPL with pink noise @1m. |
| *2: Total peak power of individual outputs (AC 120V, 25℃). This value was measured at minimum load impedance, with protection released. |
