| Speaker type |
Full-range, Bass reflex |
| Frequency range (-10dB) |

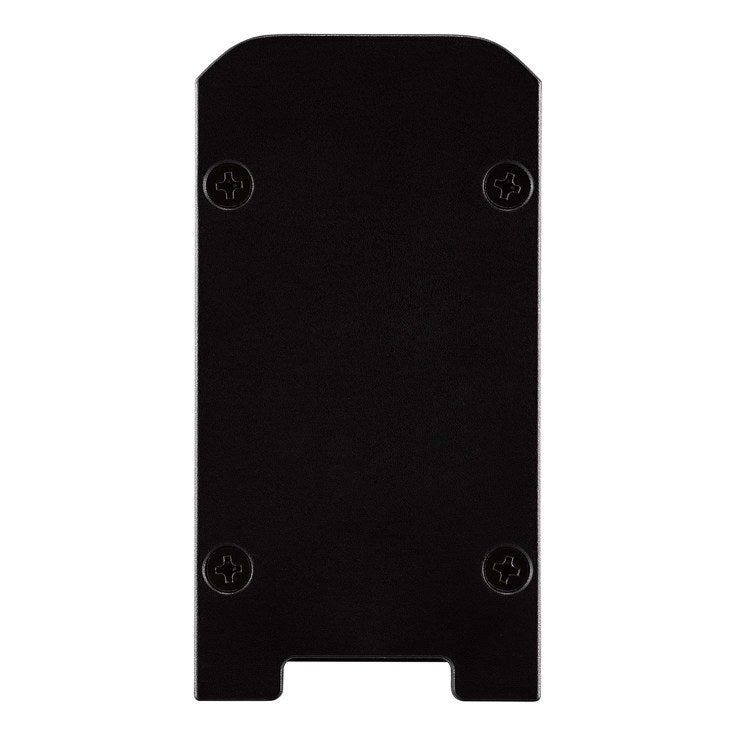

77 Hz – 20 kHz *1, 98 Hz – 20 kHz *1 (with port cover) |
| Nominal coverage |
H |
170° |
| V |
15°(+7.5° – -7.5°) (NORMAL), 20°(+7.5° – -12.5°) (WIDE) |
| Effective coverage (-10dB) |
H |
180° |
| V |
25°(+12.5° – -12.5°) (NORMAL), 35°(+12.5° – -22.5°) (WIDE) |
| Components |
LF-HF |
1.5” (3.75 cm) Cone × 24 |
| Power rating |
NOISE |
110 W |
| PGM |
220 W |
| PEAK |
440 W |
| Nominal impedance |
8Ω |
| SPL |
Sensitivity (1W; 1m on axis) |
91 dB SPL (1 m/1 W) *1 *2 (91 dB SPL with port cover) |
| Peak (Calculated) |
117 dB SPL (1 m) *3 |
| I/O connectors |
Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) |
| Protection circuit |
Load protection |
Full-range power limiting to protecting network and transducers |
| Finish |
VXL1B-24: Black painting (approximate value: Munsell N3.0), VXL1W-24: White painting (approximate value: Munsell N9.0) |
| Dust and water resistant |
IP34 (IP35 with port cover) |
| Packaging |
Packaged in 1 pc |
| Dimensions (W x H x D) |

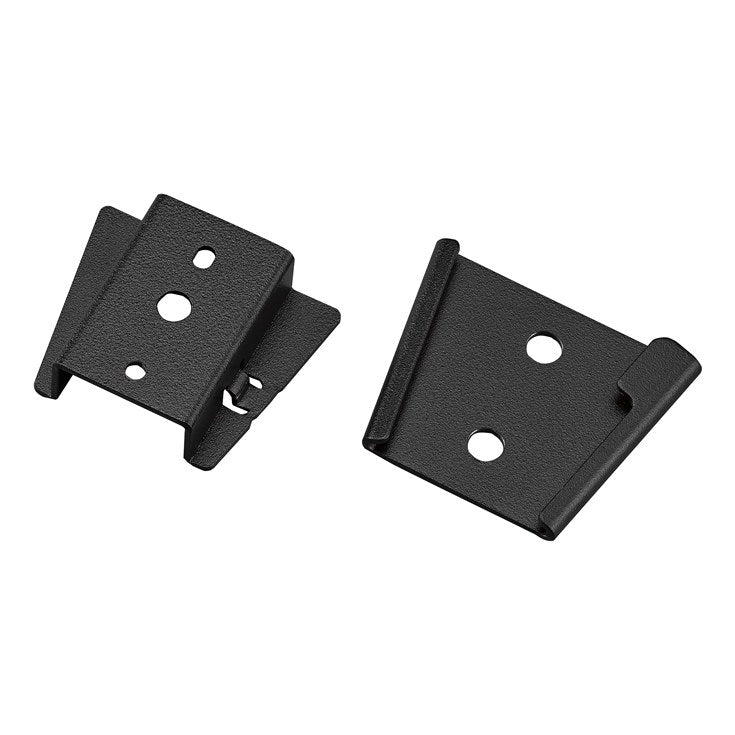

W54 × H1212 × D104 mm (Speaker only), W54 × H1212 × D111.5 mm (With included bracket) |
| Weight |
5.5 kg (Speaker only) |
| *1: Half-space (2 π) |
|
|
| *2: Measured at 2 m; value converted to 1 m is shown (frequency range: 100 Hz – 10 kHz) |
| *3: Calculated based on power rating and sensitivity, exclusive of power compression. |
| *0 dBu is referenced to 0.775 Vrms. |
|
