| Speaker type |
Full-range, Bass reflex |
| Frequency range (-10dB) |
81 Hz – 20 kHz *1, 108 Hz – 20 kHz *1 (with port cover) |
| Nominal coverage |
H |
170° |
| V |
25°(+12.5° – -12.5°) (NORMAL), 30°(+12.5° – -15°) (WIDE) |
| Effective coverage (-10dB) |
H |
180° |
| V |
30°(+15° – -15°) (NORMAL), 45°(+15° – -30°) (WIDE) |
| Components |
LF-HF |
1.5” (3.75 cm) Cone × 16 |
| Power rating |
NOISE |
80 W |
| PGM |
160 W |
| PEAK |
320 W |
| Nominal impedance |
12Ω |
| SPL |
Sensitivity (1W; 1m on axis) |
91 dB SPL (1 m/1 W) *1 *2 (90 dB SPL with port cover) |
| Peak (Calculated) |
116 dB SPL (1 m) *3 |
| I/O connectors |
Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) |
| Protection circuit |
Load protection |
Full-range power limiting to protecting network and transducers |
| Finish |
VXL1B-16: Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting (approximate value: Munsell N9.0) |
| Dust and water resistant |
IP34 (IP35 with port cover) |
| Packaging |
Packaged in 1 pc |
| Dimensions (W x H x D) |

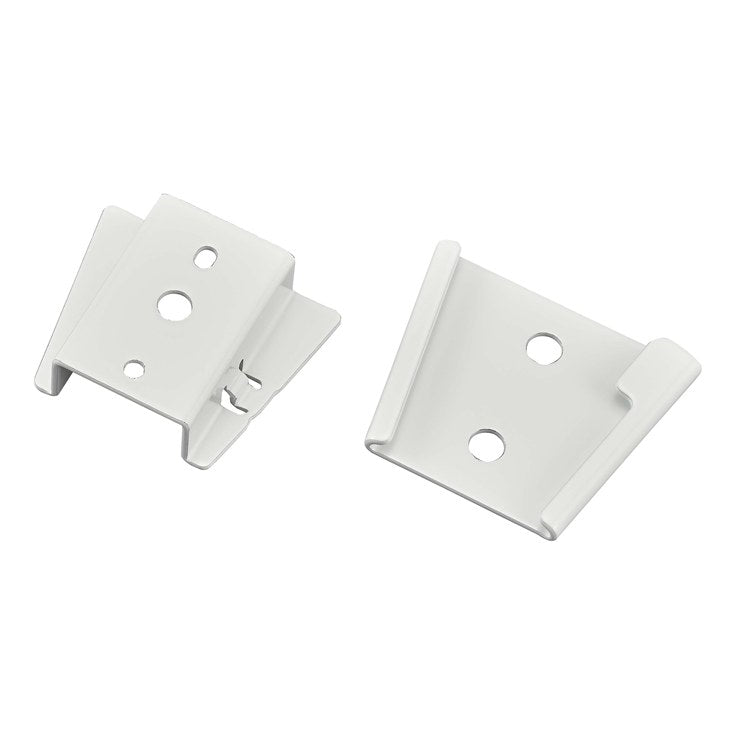

W54 × H846 × D104 mm (Speaker only), W54 × H846 × D111.5 mm (With included bracket) |
| Weight |
3.9 kg (Speaker only) |
